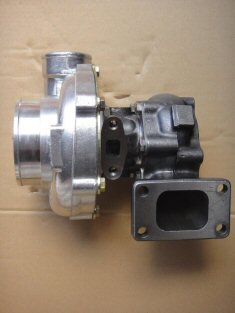

GT30 GT35 T3 FLANGE 5 BOLT P TRIM Oil Cooled Universal Turbo Charger 400HP
Prod.# FLANGE 5 BOLT P TRIM TURBO
RELENTLESS
TURBO TUNING
OFFERS:
.70 COLD SIDE
.63 HOT
GT30 / GT35 POWER PLANT
5 BOLT EXHAUST HOUSING
4" INLET
GREAT FOR EVO , RB20 , LEXUS, SUPRA . = ALL SORTS OF APPLICATIONS
Oil cooled cavity for longer life expectancy and reduced oil cooking.
Huge T4 .70 ar compressor housing for excellent high hp applications.
Large single scroll T3 turbine with 59mm x 45mm inlet opening .70ar for fast turbo response and low back pressure.
Shaft bronze bushing used for fast turbo spool & low friction.
Dual cartridge center section for faster turbo response and higher spool efficiency.
High performance bronze thrust collar bearing used for low friction.
High performance cromoly oil ring's used for long life expectancy.
Light weight ductile casting only weighs 15.80lb for reduced manifold strain.
Compressor Spec:
T4 .70ar housing
4" Inlet
2.5" Outlet 5 BOLT
Big shaft T4 compressor wheel
61.37mm 2.416" minor
81.96mm 3.227" major
Coolant cavity thread 14x1.5 banjo bolt style
Turbine Spec:
.70 ar
Large mouth t3 opening 59mmx45mm
75.32mm 2.965" turbine housing outlet
High flow tapper 4 bolt outlet with 99.60mm 3.921" spacing
Big shaft GT35 Turbine shaft
62.26mm 2.451" minor
67.78mm 2.668" major
Quick Spooling with Longer Turbo life can be use on smaller engine and will decrease lag and make fast response.
$338.00
INCLUDING SHIPPING - USA
$388.00
INCLUDING SHIPPING- N. and S. America, Europe, Asia, Canada, United Kingdom, Australia,
Mexico, Germany, Japan
Our products are developed
and intended for off-road racing.
They may not be legal for use on public highways where pollution
control laws apply.
Due to the nature of the use of these products, no warranty
is implied or given.
