V3 TD04-19T BILLET TWIN TURBOS BMW N54 335i 335is XDRIVE 3.0L 775HP UPGRADE
XS-POWER • 2021 IMPROVED V3 • TD04-19T BILLET TWIN TURBOS
V3 TD04-19T BILLET TWIN TURBOS – BMW N54 335i
UP TO ~775 HP • 2021 IMPROVED V3 • NEXT-LEVEL RESPONSE & POWER

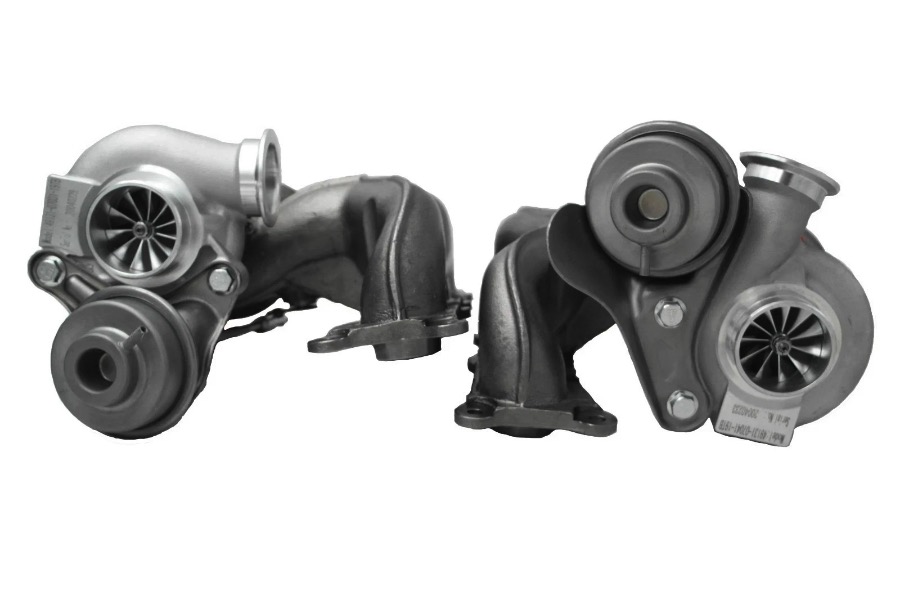

This listing is for a set of Brand New Improved V3 TD04-19T Billet Twin Turbochargers for BMW 335i / 335is N54 3.0L engines. These upgraded turbos feature forged billet compressor wheels, TD04L ultra high-flow turbine wheels, and new thrust/oiling upgrades – designed for serious power builds.
Comparable in flow to a true 19T turbo, supporting up to around 775 HP (vs. stock ~450 HP). Turbo response is absolutely amazing. Tune required!
VEHICLE FITMENT – BMW 335i / 335is WITH N54
Year 2007–2010 Model BMW 335 / 335i Engine 3.0L N54 Twin Turbo Notes RWD models
Year 2009–2010 Model BMW 335 / 335i xDrive Engine 3.0L N54 Twin Turbo Notes AWD xDrive
Year 2011 Model BMW 335i xDrive Engine 3.0L N54 Twin Turbo Notes AWD xDrive
Year 2011–2013 Model BMW 335is Engine 3.0L N54 Twin Turbo Notes Performance N54 models
Important: There are two turbo styles for the N54B30 engine. This set is for BMW 335i / 335is / xDrive / ix (LHD). For other N54 models, please message us with your model and year to confirm compatibility.
MAIN FEATURES – 2021 IMPROVED V3 TD04-19T
Upgraded forged billet compressor wheels – high mixed-flow, 11-blade, GTX-style with extended tip technology.
Compressor wheel size: 46 / 58 mm (stock size: 35.7 / 46 mm).
TD04L upgraded turbine wheels: 9-blade design, 41.2 x 47.2 mm (stock: 35 x 40 mm).
TD04L 9-blade ultra-flow Inconel turbine – approx. 30% more blade surface area than 11 & 12 blade wheels.
OEM wastegate actuators with updated thicker rods, billet end links, and upgraded billet wastegate pivot arm assemblies.
New improved dual oil port thrust assembly – machined from copper bar, upgraded thrust collar & spacer (14 mm vs. 10 mm).
Turbo model: TD04-19T – V3 2021 improved version.
Power potential: comparable in flow to 19T turbos, up to around 775 HP with proper fuel & tune.
Turbo response is absolutely amazing for a high-flow setup.
Tune required! These are not stock replacement turbos – tuning is mandatory.
BALANCING & BUILD QUALITY
Component balanced – each wheel and shaft balanced individually.
Dynamically balanced – assemblies checked under rotation.
VSR balanced using a state-of-the-art balancing machine – average 0.5 mg or less.
Upgraded dual oil port thrust system, thrust collar & spacer for improved durability under high boost.
CORE SPECIFICATIONS
Turbo Model:
V3 TD04-19T Billet Twin Turbos
For BMW N54 3.0L
Compressor Wheel (Upgraded):
11-blade forged billet
46 mm inducer / 58 mm exducer
Extended Tip Technology
Turbine Wheel (Upgraded TD04L):
9 blades
41.2 mm inducer / 47.2 mm exducer
Ultra-flow Inconel
Wastegate & Actuators:
OEM-style wastegate actuators
Thicker rods, billet end links
Upgraded billet pivot arm assembly
TURBO PART NUMBERS & OEM CROSSES
Turbo Part Numbers:
49131-07000, 49131-07001, 49131-07006, 49131-07007, 49131-07010,
49131-07011, 49131-07015, 49131-07016, 49131-07107, 49131-07018,
49131-07019, 49131-07030, 49131-07031, 49131-07040, 49131-07041,
49131-07065, 49131-07066, 49131-07067, 49131-07068, 49131-07069,
49131-07075, 49131-07076, 49131-07077, 49131-07078, 49131-07079,
49131-07161, 49131-07170, 49131-07180, 49131-07205, 49131-07206
Turbo OEM Numbers:
11654564711, 11654564710, 11657563685, 11657563686,
11657583863, 11657583864, 11657593015, 11657593016,
11657649289, 11657649290
Crosses: 4564710, 4564711, 7583863, 7583864,
7593015, 7593016, 7563685, 75636
