Shorty design for power gain from idle to mid-range RPM
OE style ball socket collector connects to factory exhaust head pipe
Fully mandrel bent tubes made of 16-gauge mild steel

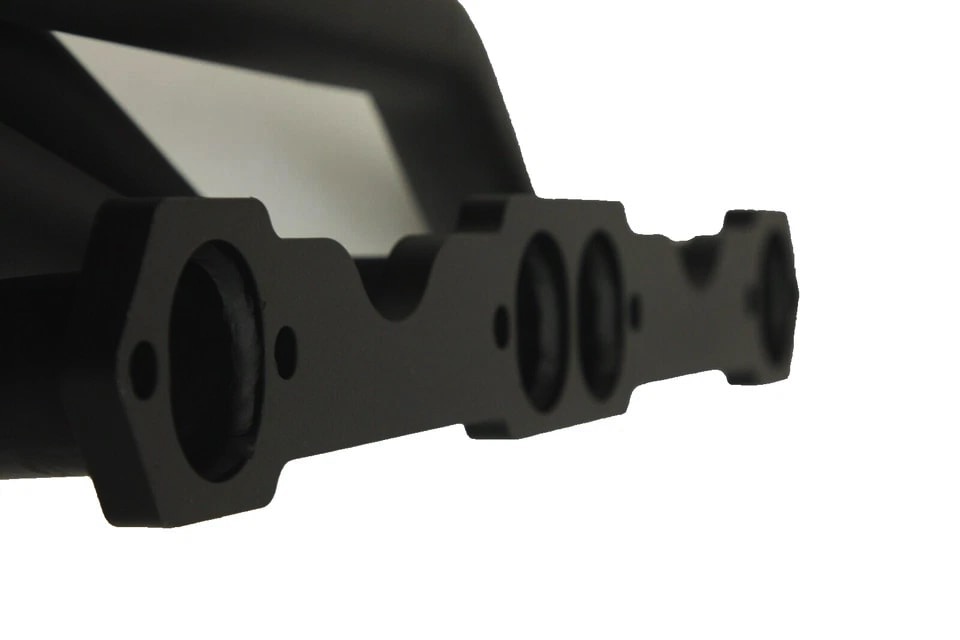

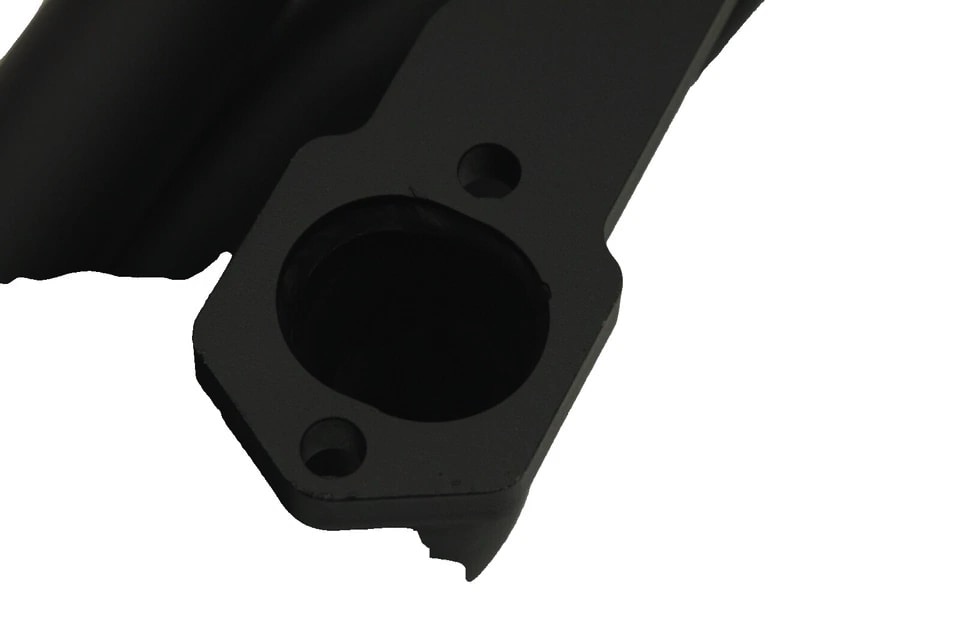

Head flanges laser-cut from 3/8-inch thick steel plates
Flanges flattened by hydraulic press for precise and leak-free seal
All joints TIG welded for resistance against cracking and wearing
Black paint coating that withstands up to 500 degrees Celsius
TECH SPECS
Header Type Shorty / Short Tube
Primary Diameter 1-1/2 in. (38mm)
Collector Diameter 2-5/8 in. (67mm)
Head Flange Thickness 7/16 inches (11.5mm)
Pipe Thickness 16 gauge (1.5mm)
Material Mild Steel
Finish Black Paint
Our products are developed
and intended for off-road racing.
They may not be legal for use on public highways where pollution
control laws apply.
Due to the nature of the use of these products, no warranty
is implied or given.
