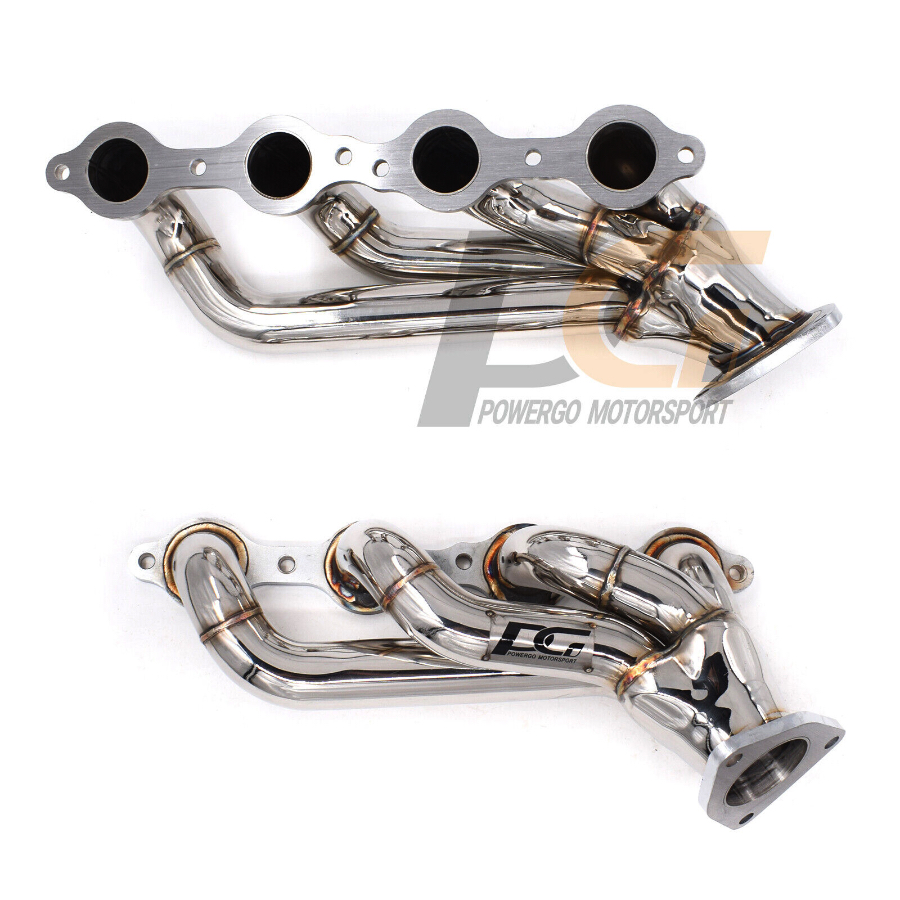

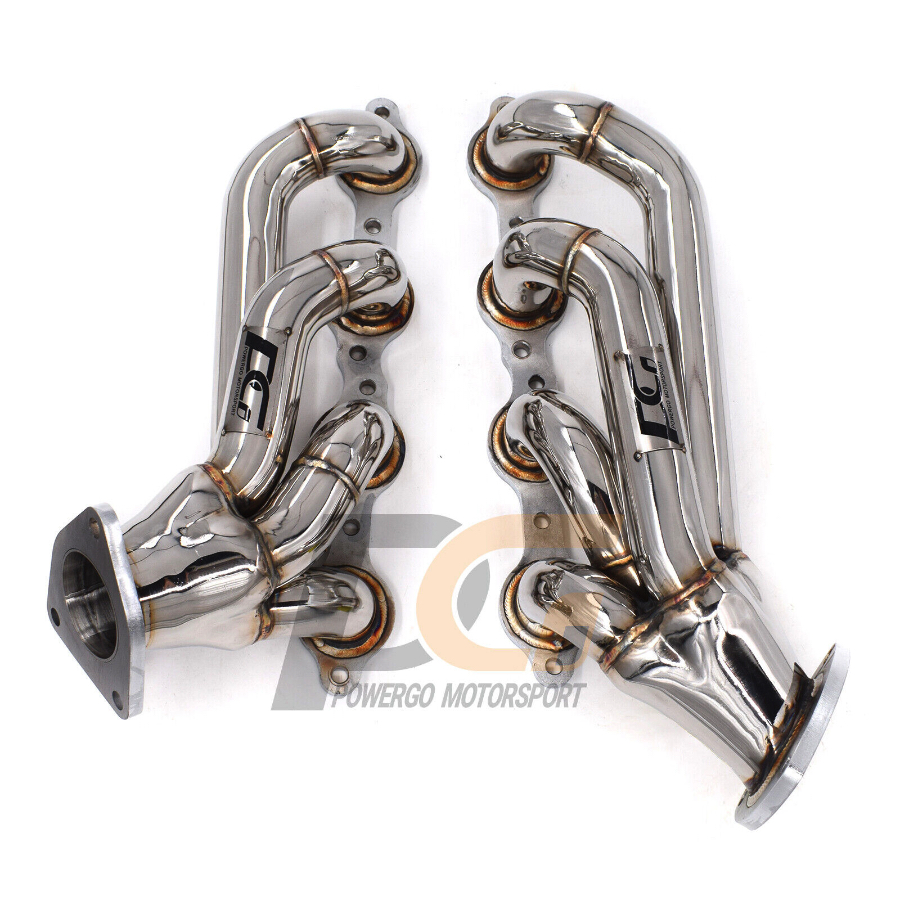

Shorty Headers for Chevy GMC 03-06 Silverado Sierra 1500HD 2500HD Truck 6.0L V8
FEATURES
Fits 03-06 Chevy/GMC trucks & SUVs with 6.0L
Shorty design for power gain from idle to mid-range RPM
Fully mandrel bent tubes made of 16-gauge 304 stainless steel

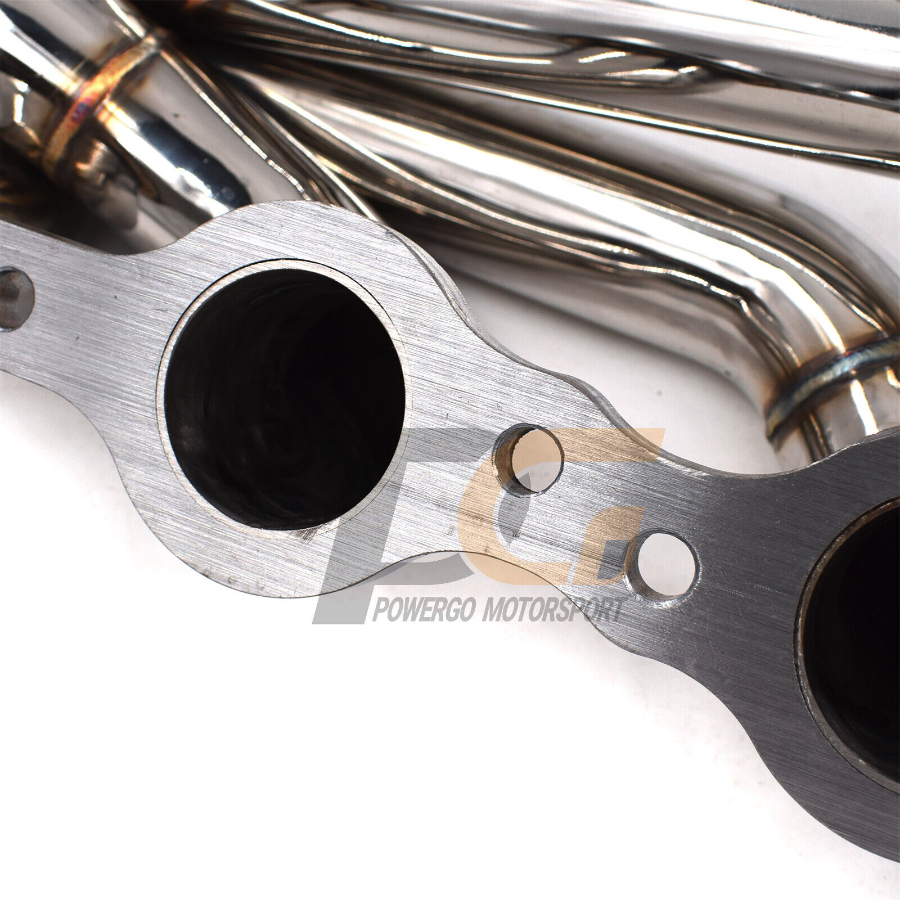

Head flanges laser-cut from 3/8-inch thick steel plates
Flanges flattened by hydraulic press for precise and leak-free seal
Flanges chrome plated for corrosion resistance
All joints TIG welded for resistance against cracking and wearing
Polished surface for extra protection against rusting
TECH SPECS
Header Type
Shorty / Short Tube
Primary Diameter
1-3/4 in. (45mm)
Collector Diameter
2-1/2 in. (64mm)
Head Flange Thickness
3/8 inches (9.5mm)
Pipe Thickness
16 gauge (1.5mm)
Material
304 Stainless Steel
Finish
Polished
For track/off-road use only
No instructions provided; professional install recommended
Our products are developed
and intended for off-road racing.
They may not be legal for use on public highways where pollution
control laws apply.
Due to the nature of the use of these products, no warranty
is implied or given.
