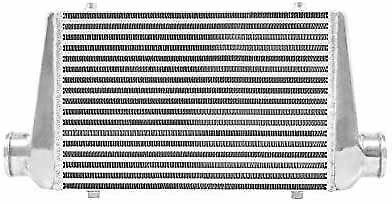

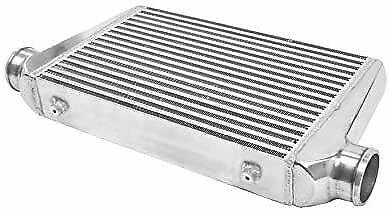

Bar and Plate Design, Polished Core Size: 18"x12"x3" Overall Size: 25"x12"x3" 3" Thick Core, 2.5" Inlet & Outlet Compress Air Flow Rate: <350Cubic Feet/Min, Rated to 500 Max HP Working Pressure: 5~50PSI Pressure Drop:2~5psi@35psi; 0.2~0.5psi@15psi Hot Air Temperature: 32°F~302°F (0°C~150°C) Material: 100% Aluminum Construction: Machine Cut and Stamped, Hand Welded
#INTERCOOLER
#FMIC
Our products are developed
and intended for off-road racing.
They may not be legal for use on public highways where pollution
control laws apply.
Due to the nature of the use of these products, no warranty
is implied or given.
